Product Description

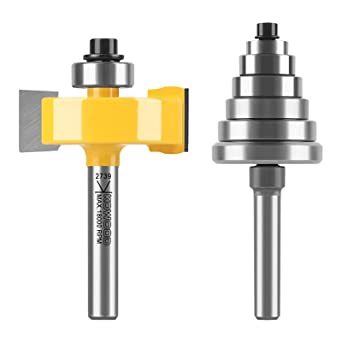

Clean up previously cut dadoes and grooves, or for surfacing cuts. KOWOOD rabbet bit in your router and guide it to cut perfect rabbets. KOWOOD rabbet bit is first choice for the average rabbeting operation is the rabbet bit, it comes with adjustable bearing for guide it to cut perfect rabbets. Specification: Cutting Edge Material: Kowood High Grade Carbide Color: Yellow Shank Dia.:1/4” (6.35mm) Cutting Lengh: 1/2” (12.7mm) Cutting Depth: 1/2”-1” (12.7-25.4mm) Package included: 1x Rabbet Router Bit 6x Bearings Safety instructions: 1. Always wear eye protection 2. Always using safety cover provided by benchtop router table 3. Do not wear gloves to avoid hazard of getting caught in the tool and pulling your hand in to get mangled during bit spinning 4. Examine the bits before use for cracks or chips. Do not use damaged or bull bits. 5. Make sure bits are properly secured in collect and reach the indicator mark (“K” Mark) 6. This product is designed for portable or benchtop router machines. Please do not use in another machine (etc. Driller) 7. Max. Rpm in 18000 Note: 1. Determine the size of the rabbet you need. This bit set includes 6 changeable bearings 2. Select the appropriate guide bearing to produce that rabbet, use hex wrench to install the appropriate bearing on the bit. 3. Make sure the bearing is on securely and can spin freely. 4. Install the bit in a handheld or table-mounted router and set the bit cutting height to achieve the desired depth of rabbet. If using in a router table, set the fence so it aligns with the guide bearing. 5. Turn on the router and carefully make the cut. If using a handheld router, keep the bearing up against the edge of your workpiece as you make the cut. If using a table-mounted router, keep the workpiece against the fence as you advance it past the bit
